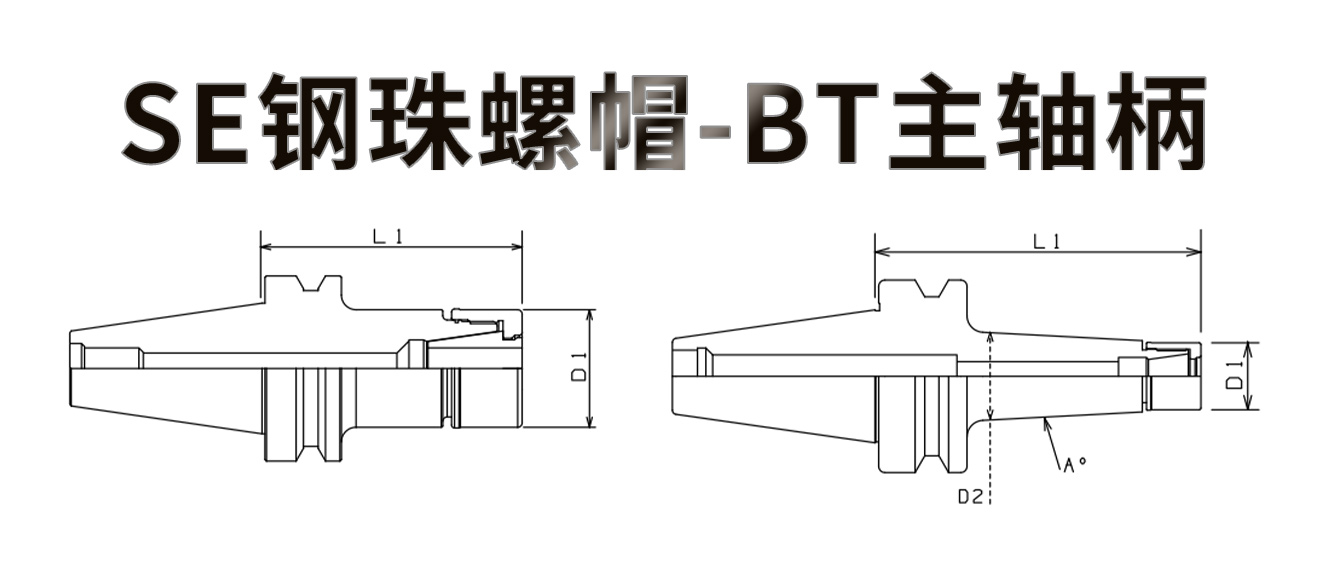

| 型号 | 基本尺寸（mm) Size | |||
| D1 | L1 | 筒夹 | 扳手 | |
| BT30-SE16B-60L | 28 | 60 | SE16 | SE16-AM |
| BT30-SE16B-75L | 75 | |||
| BT30-SE16B-90L | 90 | |||
| BT30-SE16B-150L | 150 | |||
| BT30-SE20B-60L | 34 | 60 | SE20 | SE20-AM |
| BT30-SE20B-75L | 75 | |||
| BT30-SE20B-90L | 90 | |||
| BT30-SE20B-150L | 150 | |||
| BT30 -SE25B-60L | 42 | 60 | SE25 | SE25-UM |
| BT30 -SE25B-75L | 75 | |||
| BT30-SE25B-90L | 90 | |||
| BT30-SE32B-70L | 50 | 70 | SE32 | SE32-UM |
| BT30 -SE32B-75L | 75 | |||
| BT30-SE32B-100L | 100 | |||
| 型号 | 基本尺寸（mm) Size | |||
| D1 | L1 | 筒夹 | 扳手 | |
| BT40-SE16B-70L | 28 | 70 | SE16 | SE16-AM |
| BT40-SE16B-100L | 100 | |||
| BT40-SE16B-125L | 125 | |||
| BT40-SE16B-150L | 150 | |||
| BT40-SE16B-200L | 200 | |||
| BT40-SE20B-70L | 34 | 70 | SE20 | SE20-AM |
| BT40-SE20B-100L | 100 | |||
| BT40-SE20B-135L | 135 | |||
| BT40-SE20B-150L | 150 | |||
| BT40-SE25B-70L | 42 | 70 | SE25 | SE25-UM |
| BT40-SE25B-100L | 100 | |||
| BT40-SE25B-150L | 150 | |||
| BT40-SE32B-70L | 50 | 70 | SE32 | SE32-UM |
| BT40-SE32B-100L | 100 | |||
| BT40-SE32B-150L | 150 | |||
| 型号 | 基本尺寸（mm) Size | |||
| D1 | L1 | 筒夹 | 扳手 | |
| BT50-SE16B-100L | 28 | 100 | SE16 | SE16-AM |
| BT50-SE16B-150L | 150 | |||
| BT50-SE16B-200L | 200 | |||
| BT50-SE20B-100L | 34 | 100 | SE20 | SE20-AM |
| BT50-SE20B-150L | 150 | |||
| BT50-SE20B-200L | 200 | |||
| BT50-SE20B-250L | 250 | |||
| BT50-SE25B-100L | 42 | 100 | SE25 | SE25-UM |
| BT50-SE25B-150L | 150 | |||
| BT50-SE25B-200L | 200 | |||
| BT50-SE25B-250L | 250 | |||
| BT50-SE32B-100L | 50 | 100 | SE32 | SE32-UM |
| BT50-SE32B-150L | 150 | |||
| BT50-SE32B-200L | 200 | |||
| BT50-SE32B-250L | 250 | |||
