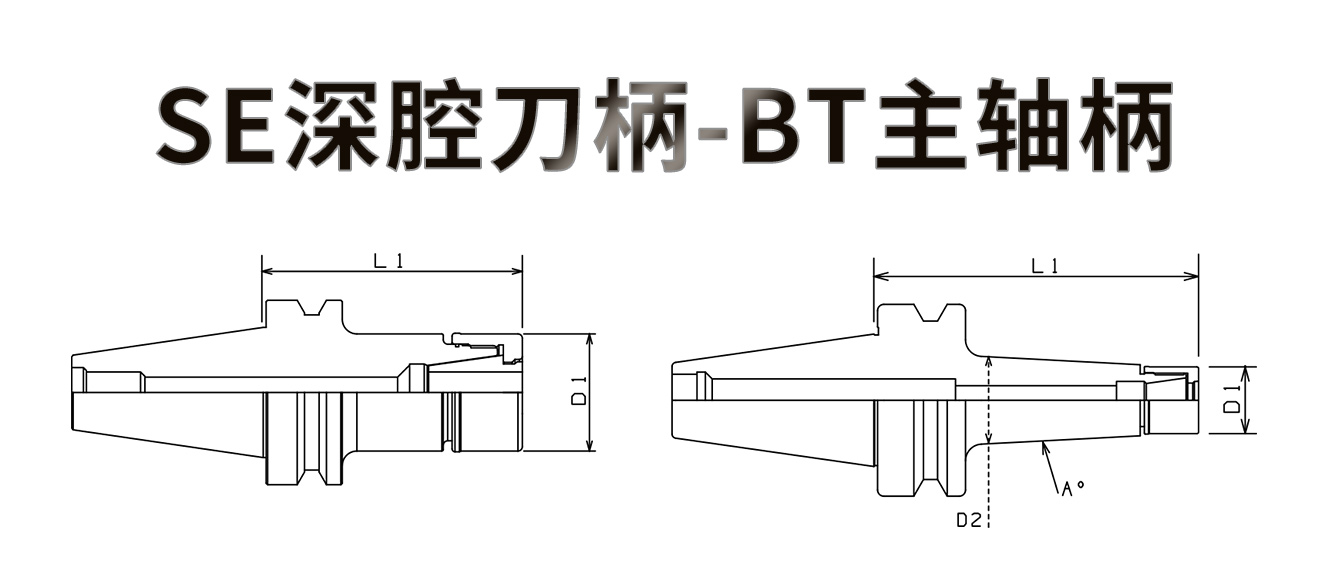

| 型号 | 基本尺寸（mm) Size | |||||
| D1 | D2 | L1 | 筒夹 | 扳手 | 锥度A | |
| BT30-HSE8-90L-A3 | 12 | 16.5 | 90 | SE8 | D12.BS | 3 |
| BT30-HSE8-105L-A3 | 17.5 | 105 | ||||
| BT30-HSE8-120L-A3 | 19.6 | 120 | ||||
| BT30-HSE8-135L-A3 | 20.5 | 135 | ||||
| BT30-HSE11-90L-A3 | 16 | 20.85 | 90 | SE11 | D16-BS | 3 |
| BT30-HSE11-105L-A3 | 22.8 | 105 | ||||
| BT30-HSE11-120L-A3 | 23.99 | 120 | ||||
| BT30-HSE11-164L-A2 | 24.45 | 164 | 2 | |||
| 型号 | 基本尺寸（mm) Size | |||||
| D1 | D2 | L1 | 筒夹 | 扳手 | 锥度A | |
| BT40-HSE8-100L-A3 | 12 | 18.79 | 100 | SE8 | D12-BS | 3 |
| BT40-HSE8-150L-A3 | 24.03 | 150 | ||||
| BT40-HSE11-100L-A3 | 16 | 21.33 | 100 | SE11 | D16-BS | 3 |
| BT40-HSE11-150L-A3 | 26.32 | 150 | ||||
| BT40-HSE16-150L-A3 | 22 | 31.81 | 150 | SE16 | D22-BS | 3 |
| BT40-HSE16-200L-A3 | 37.04 | 200 | ||||
| BT40-HSE20-150L-A3 | 27.5 | 37.31 | 150 | SE20 | D27.5-BS | 3 |
| BT40-HSE20-200L-A3 | 42.55 | 200 | ||||
| BT40-HSE20-150L-A3 | 35 | 45.00 | 150 | D35-BS | ||
| BT40-HSE20-200L-A3 | 50.25 | 200 | ||||
| BT40-HSE25-200L-A2 | 40 | 52.24 | 200 | SE25 | D40-BS | 2 |
| BT40-HSE32-200L-A1 | 50 | 55.06 | 200 | SE32 | D50-BS | 1 |
| 型号 | 基本尺寸（mm) Size | |||||
| D1 | D2 | L1 | 筒夹 | 扳手 | 锥度A | |
| BT50-HSE16-150L-A3 | 22 | 30.56 | 150 | SE16 | D22-BS | 3 |
| BT50-HSE16-200L-A3 | 35.8 | 200 | ||||
| BT50-HSE16-250L-A3 | 41.40 | 250 | ||||
| BT50-HSE16-300L-A3 | 46.28 | 300 | ||||
| BT50-HSE16-100L-A3 | 27.5 | 31.3 | 100 | SE16 | D27.5-BS | 3 |
| BT50-HSE16-150L-A3 | 36.55 | 150 | ||||
| BT50-HSE16-200L-A3 | 41.78 | 200 | ||||
| BT50-HSE16-250L-A3 | 47.01 | 250 | ||||
| BT50-HSE16-300L-A3 | 52.25 | 300 | ||||
| BT50-HSE20-150L-A3 | 27.5 | 36.01 | 150 | SE20 | D27.5-BS | 3 |
| BT50-HSE20-200L-A3 | 41.05 | 200 | ||||
| BT50-HSE20-250L-A3 | 46.49 | 250 | ||||
| BT50-HSE20-300L-A3 | 51.79 | 300 | ||||
| BT50-HSE20-100L-A3 | 35 | 37.26 | 100 | SE20 | D35-BS | 3 |
| BT50-HSE20-150L-A3 | 42.5 | 150 | ||||
| BT50-HSE20-200L-A3 | 47.73 | 200 | ||||
| BT50-HSE20-250L-A3 | 52.92 | 250 | ||||
| BT50-HSE20-300L-A3 | 58.2 | 300 | ||||
| BT50-HSE25-100L-A3 | 40 | 45.26 | 100 | SE25 | D40-BS | 3 |
| BT50-HSE25-150L-A3 | 50.5 | 150 | ||||
| BT50-HSE25-200L-A3 | 55.74 | 200 | ||||
| BT50-HSE25-250L-A3 | 60.97 | 250 | ||||
| BT50-HSE32-100L-A3 | 50 | 53.26 | 100 | SE32 | D50-BS | 3 |
| BT50-HSE32-150L-A3 | 58.5 | 150 | ||||
| BT50-HSE32-200L-A3 | 63.73 | 200 | ||||
| BT50-HSE32-250L-A3 | 68.97 | 250 | ||||
